📊 Basic Information
Raw Material
Cellulose Fiber, Cement, Quartz Powder, Wood Pulp
Asbestos
100% Non-Asbestos
Application
Wall Partition, Exterior Cladding, Flooring

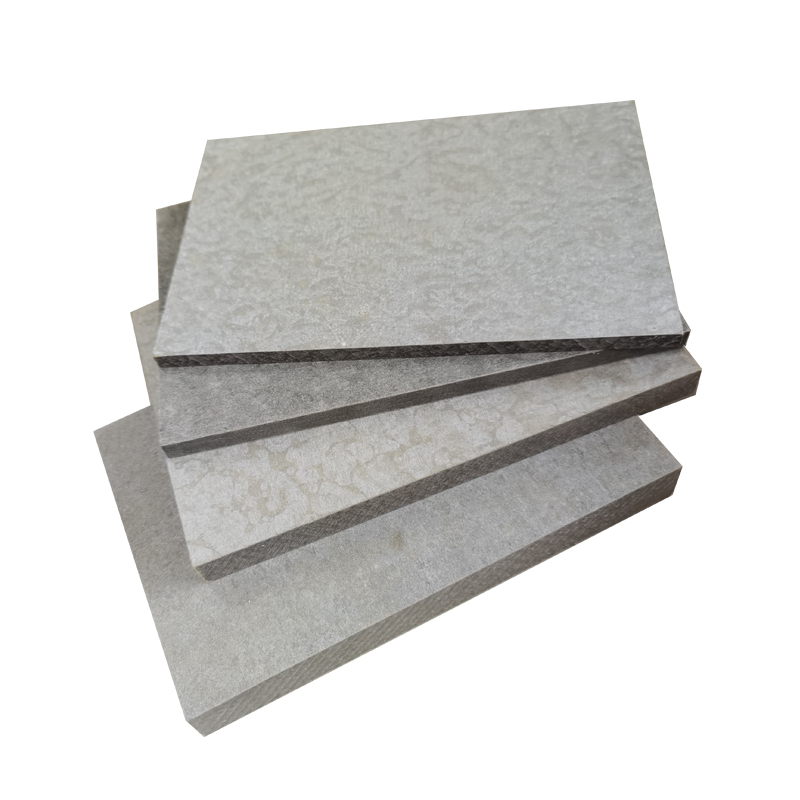

🏗️ Product Description
Fiber cement board is a new type of green environmental protection board with excellent performance, such as fireproof, moisture proof, insect-resistant, easy working, thermal insulation, low deformation coefficient and durable. It is widely used for partition walls, exterior cladding and floors in offices, hospitals, factory buildings, villas, theaters and various art buildings.
| Physical Properties |
Specification / Value |
| Density | 1.2-1.6g/cm3 |
| Thermal conductivity | ≤0.29 W/(m.k) |
| Water absorption | ≤28% |
| Water contain | ≤10% |
| Moisture movement | ≤0.25% |
| Bending strength (Oven Dry) | ≥16 Mpa |
| Bending strength (Water Saturation) | ≥13 Mpa |
| Non-combustibility | Class A |
| Key Features | Waterproof, Fireproof, Sound insulation, Easy installation |

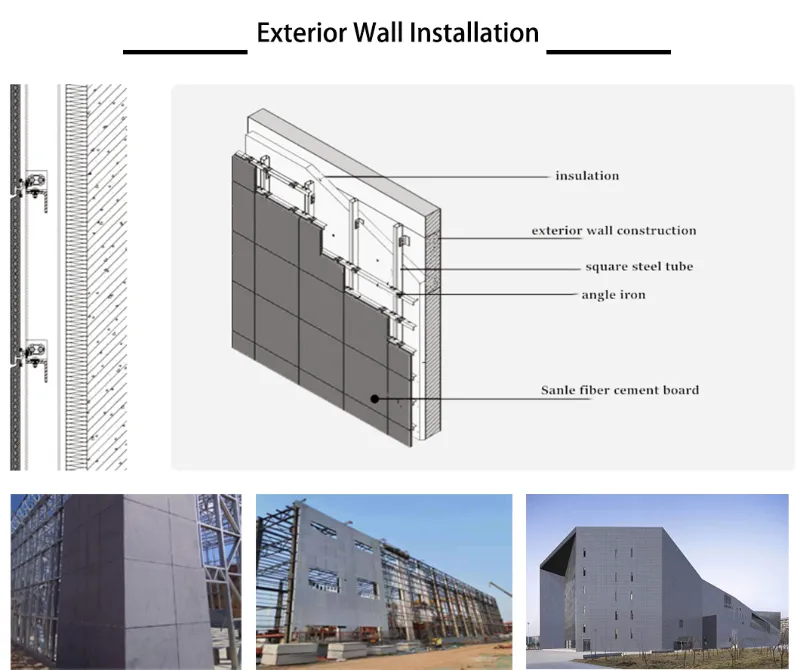

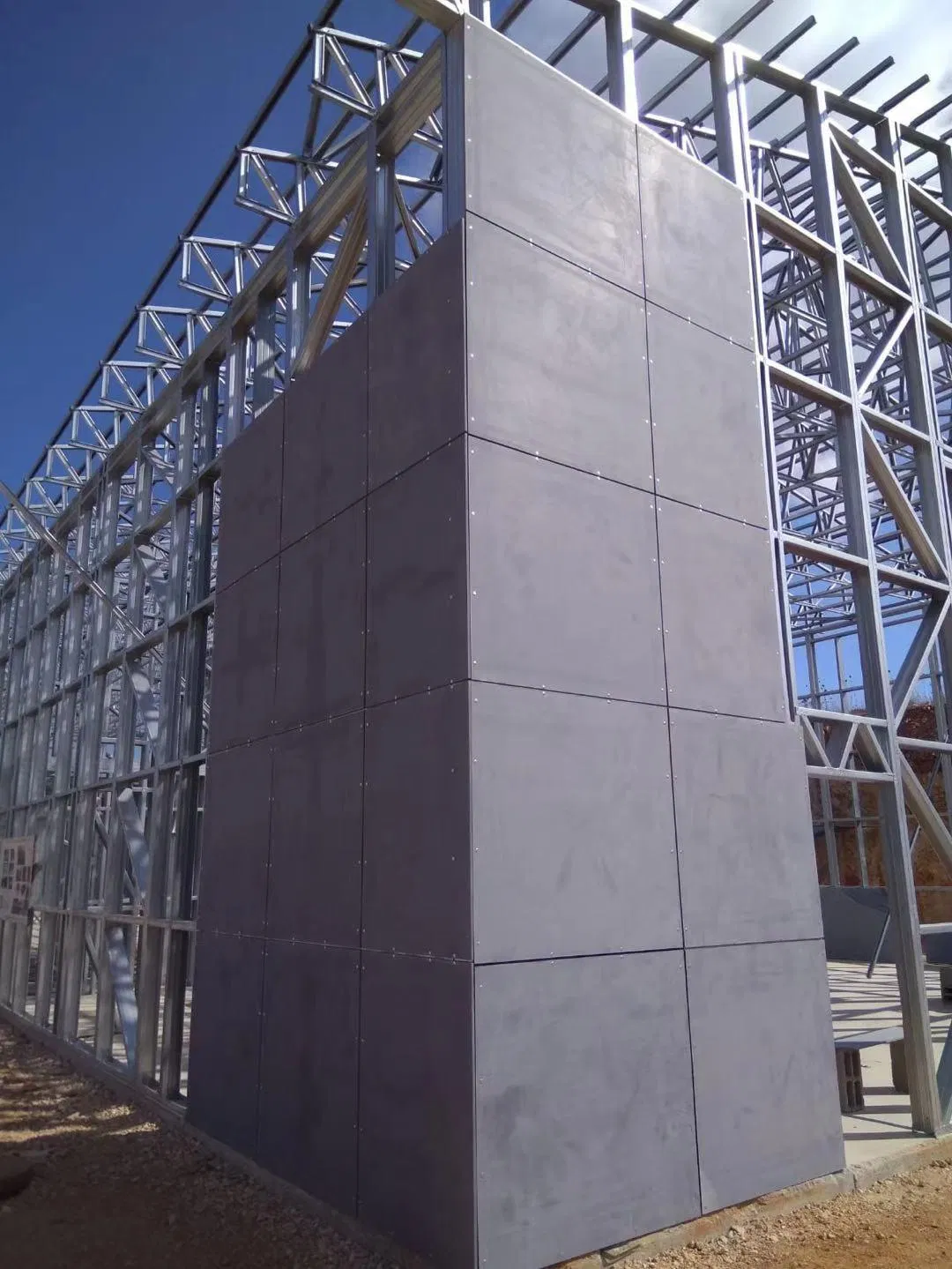

🛠️ Exterior Wall Installation Guide
Preparation: Install supporting aluminum accessories on the back of the board based on design requirements.
Wall Marking: Clean the wall surface and mark position lines for the steel frame.
Keel Installation: Fix angle irons and vertical square steel tubes. Ensure perpendicularity using steel wires.
Board Mounting: Connect panels to the keel using aluminum accessories. Adjust horizontal and vertical alignment.
Joint Treatment: Fill seams with fiber cement powder mixing glue and apply special coating.

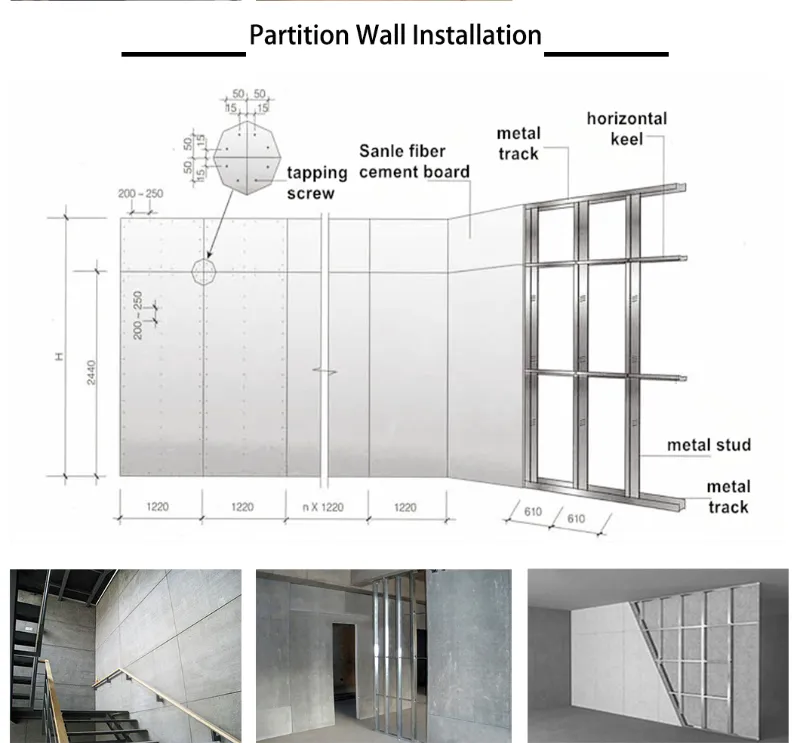

🧱 Partition Wall Installation
Fix top and bottom keels to the floor and ceiling with expansion bolts.
Align vertical keels at 612mm intervals.
Cut boards to size (approx. 10mm lower than wall height).
Fix boards using tapping screws at 200-250mm intervals.
Maintain a 4mm expansion seam between boards.

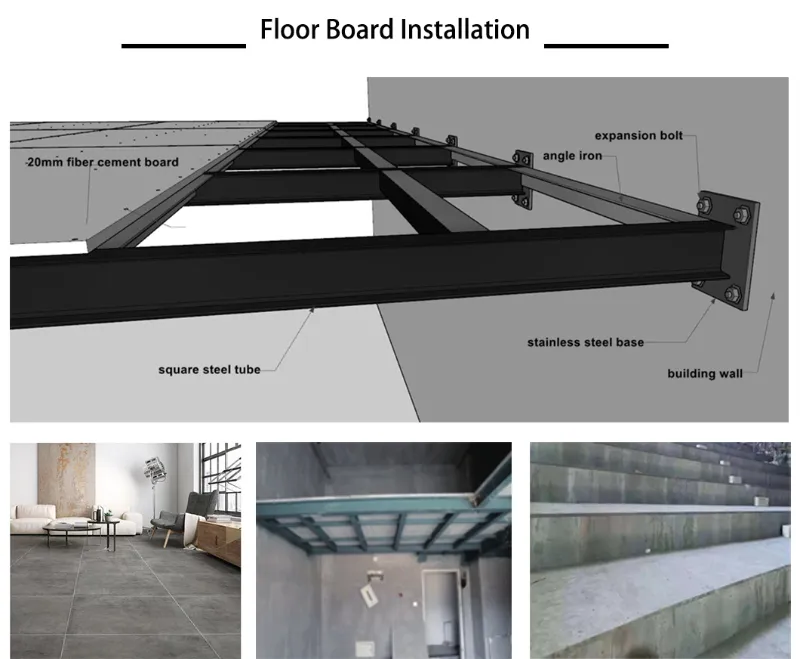

📐 Floor Board Installation
Polish welding seams flat on the steel structure before laying boards.
Lay boards parallel to the main beam; ensure no edges are suspended.
Leave a 3-5mm gap between boards.
Use M5*45mm countersunk head tapping screws for fastening.

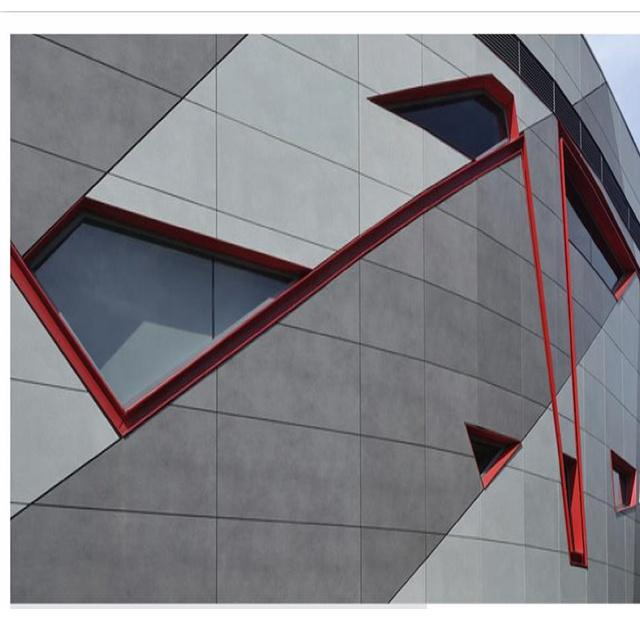

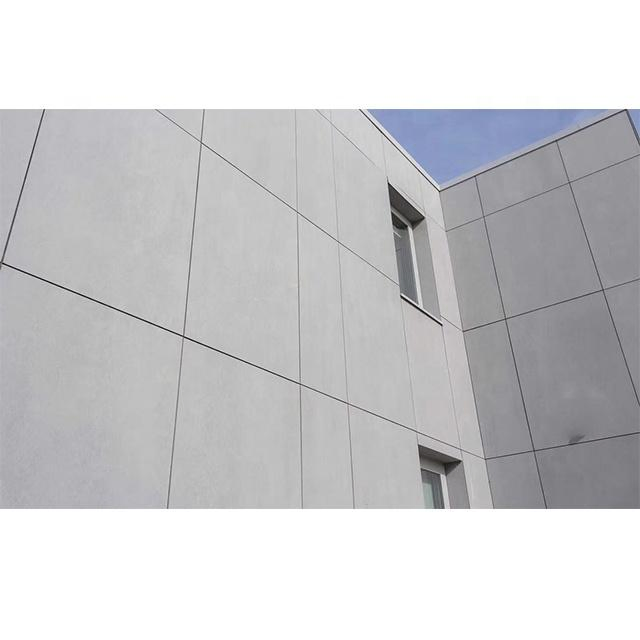

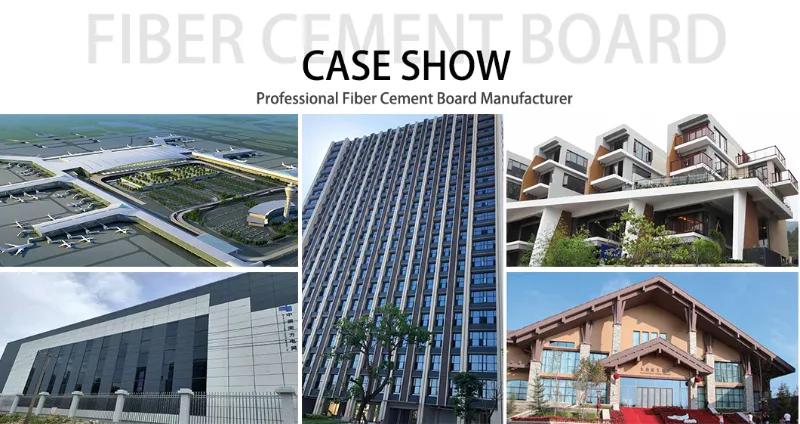

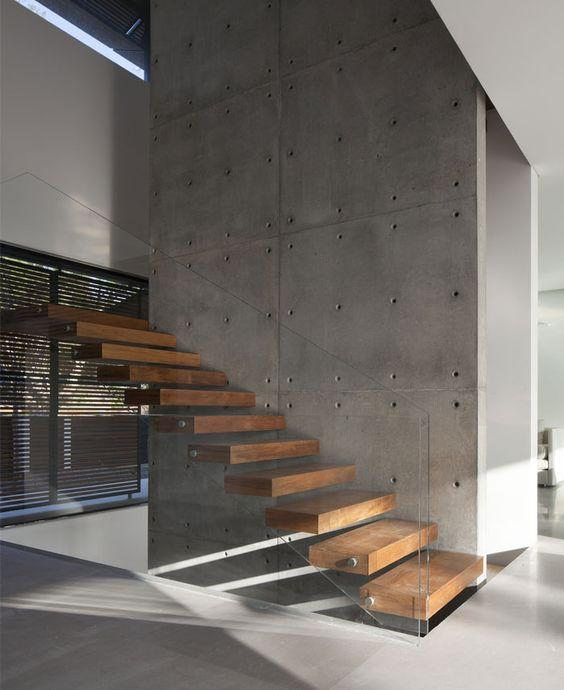

📸 Application & Display

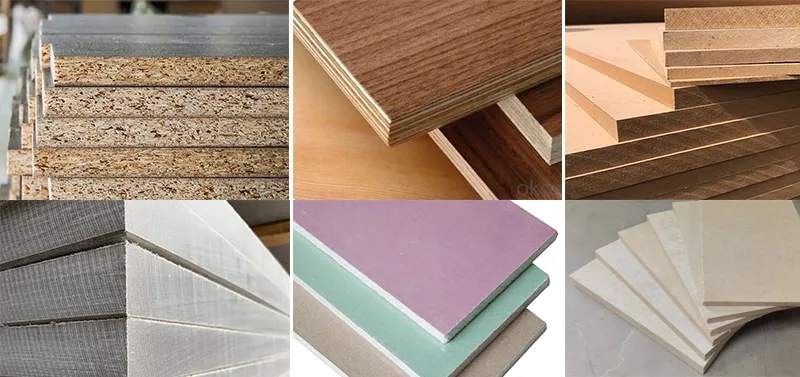

📦 Main Product Range
Plywood, MDF board, Particle board, Chip board, Gypsum board, Fiber cement siding board, Non-asbestos cement board, Calcium Silicate Board, etc.
❓ Frequently Asked Questions
What are your terms of packing?
Generally, we pack our goods in bundles or wood pallets. We can also provide customized packaging according to customer requests.
What are your terms of payment?
We accept 30% T/T in advance and 70% during the shipment period, or L/C at sight.
What are your terms of delivery?
Our standard delivery terms include EXW, FOB, CFR, and CIF.
How about your delivery time?
For stock items, we can ship within 15 days after receiving the deposit. For new production, it typically takes 20 to 25 days.
Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings. We also have the capability to build molds and fixtures.
Do you provide samples for free?
We provide samples free of charge; however, the customer is responsible for the shipping costs.
